Baitcaster vs spinning reel

Run both reels through the same cast, retrieve and drag, then compare them row by row.

On a spinning reel, line comes off a spool that stays still during the cast; on a baitcaster, the spool itself turns. That turning spool lets your thumb control the cast, but it can overrun. Spinning line can still tangle from loose coils or twist, and very light lures are usually easier to cast on a spinning reel.1 2 3 4 5 6 7 8 9 10 11

Who usually starts with what

Spinning outfits are a common place to start: the spool stays still on the cast, so there is no spool speed to manage. A baitcaster adds that job, which the brakes and your thumb share.1 2 4 5 6 7 8 9 12 13 14 15

Mechanism lab

Reel

State

Compare reels

View

Compare with

Trace the line before anything moves.

What turns when line leaves the reel?

What keeps moving while line goes out?

What turns to wind line back in?

Which part yields when the drag slips?

Can the spool feed line faster than it leaves?

2 of 6

Still frame. Play a short demonstration.

Try a prediction

Fig. 1

Spinning reel

Bail closed: line runs from the spool over the line roller and out through the guides. Nothing turns.16 17

Why it works this way

The closed bail is what keeps line on the roller path; anti-reverse holds the rotor against a pull on the line.16 17

Bail open: line leaves the fixed spool in coils over its lip. No part of the reel turns.10 16

Why it works this way

Because the spool is fixed, the cast needs nothing to spin; the coils are why the first rod guide is large.10 16 18

Line keeps coming off the stationary spool as long as the lure pulls; the rotor stays still.10 16

Why it works this way

With nothing rotating there is nothing to keep feeding line after the lure slows.1 2

Turning the handle spins the rotor around the fixed spool; the line roller carries line onto the spool while the spool moves in and out.1 2 3

Why it works this way

The gear ratio is how many rotor turns one handle turn makes; the spool's in-and-out travel lays line evenly.1 2 4 7 17 19 20

A pull stronger than the drag setting turns the spool against the drag and line goes out; anti-reverse holds the rotor and handle.13 16 17

Why it works this way

The spool can rotate as line pays out against drag. During ordinary retrieval, the rotor turns instead.13

No rotating-spool overrun on this cast: the spool stays stationary. Loose or twisted line can still leave in loops and tangle.1 2

Why it works this way

The spool does not rotate during a normal cast, so it cannot feed line by continuing to spin. Loose or twisted line can still tangle.1 2 5 7 8 9

Fig. 2

Baitcast reel

Engaged (thumb bar up): the spool is locked to the gears and holds the line, with the thumb resting on it.4

Why it works this way

Until the thumb bar is pressed, the spool is locked to the gears; only a pull stronger than the drag can turn it.4

Thumb bar pressed: the spool is freed from the gears and spins as the lure pulls line off it.3 4 5 6

Why it works this way

This is the mechanism that differs from a spinning reel: the spool itself revolves to pay out line.1 2 3 4 5 6

The spool keeps turning as line runs out. Spool tension and the brakes slow it, which helps keep it from turning faster than line leaves.5 7 14 15

Why it works this way

Tension acts at the spool shaft; the brake acts on spool speed during the cast. They are separate controls.5 7 14 15

Turning the handle re-engages the clutch and turns the spool; the level wind walks the line across it.1 4

Why it works this way

The spool is driven through the gears, so the ratio is spool turns per handle turn here, not rotor turns.2 3 4 5 6 7 19 20

A pull above the star-drag setting turns the spool backwards against the drag while the handle stays still.4 13 21

Why it works this way

The drag sits between the handle and the spool drive, so the spool can yield without the handle turning.4 21

The lure has slowed but the spool is still turning: line lifts off in loose loops that pile on the spool.5 7 8 9

Why it works this way

Three separate checks slow the spool: spool tension, the brake system, and the thumb as the lure lands.4 5 6 7 8 9 14 15

fishing line active partdashed = far side or inside

Simplified mechanism examples. Arrows show the direction of motion; sizes and timing are illustrative.

Image version This diagram as a picture, to save or print

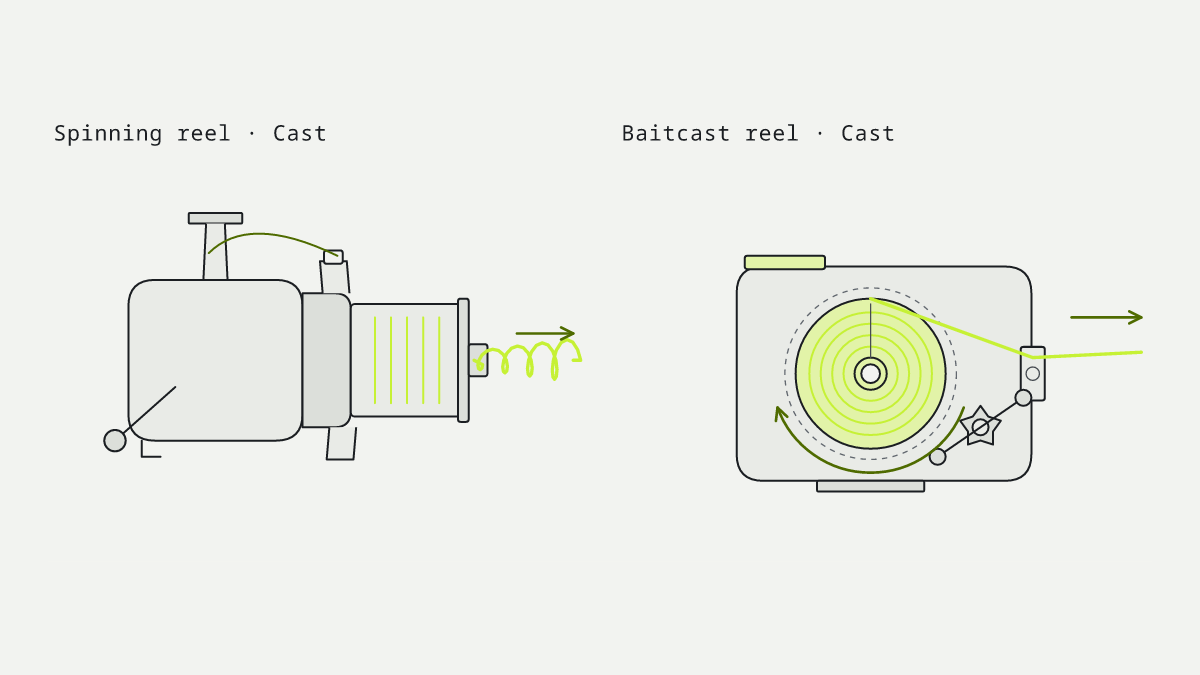

Diagram of the spinning reel and baitcast reel side by side at the cast stage, with the fishing line and the parts that move highlighted.

What differs, row by row

Typical, as described by the sources

Baitcaster vs spinning reel: mechanism and typical trade-offs
Aspect	Spinning reel	Baitcast reel
What turns on the cast	Nothing; line coils off a fixed spool	The spool itself3 4 5 6 10 16
Overrun	No rotating-spool overrun; line can still tangle	Overrun is possible; casting controls help limit it1 2 5 7 14 15
Line twist	More often associated with twist	Line leaves the way it went on, which helps limit twist7 9 11
Very light lures	Usually easier to cast	Usually harder: the lure has to start the spool turning7 9 10 11
Your thumb on the cast	Not needed to control the spool	Feathers the spool and stops it as the lure lands4 5 6 8 9 10 16
Handle side	Usually moves to either side	Right- or left-hand versions1 7 11 22
Typical pairing	Often paired with lighter lures and line	Often paired with heavier lures; finesse versions also exist10 11
Drag	Front knob on the example shown	Star beside the handle on the example shown2 4 21
Rod it mounts on	Reel and guides below the blank	Reel and guides above; trigger seat12 18

What is the difference between a baitcaster and a spinning reel?

The difference starts at the spool: a spinning reel’s spool stays still while a rotor winds line around it, and a baitcaster’s spool turns, both to let line out and to wind it in.1 2 3 4 5 6 The rows below follow from that.

Select Cast on both reels in the lab. The spinning reel’s bail is open, and coils slip off the end of the still spool. On the baitcaster, the thumb bar has freed the spool, and it spins as the lure pulls line away.

Light lures, heavy lures and body shapes

Very light lures are usually easier to cast on a spinning reel, because on a baitcaster the lure has to pull line from a turning spool.7 9 10 11 Light-lure baitcasters and heavy-duty spinning reels both exist, so the usual pairing describes common use rather than a rule. Baitcasters also come in round and low-profile designs, and conventional reels can have casting brakes too.21 23

Check the rod too

A typical spinning rod carries the reel and its guides below the blank; a casting rod carries the reel on top.12 18 A reel foot that fits a seat can still leave an awkward grip or a poor line path. The rod comparison shows the seat, trigger and first guide one above the other.

Questions people ask

Why do baitcasters backlash?: A baitcaster's spool turns and can keep turning faster than line is leaving. A spinning reel's spool stays still, so nothing keeps feeding line after the lure slows, although loose or twisted line can still tangle.1 2 5 7 8 9
Is a baitcaster harder to use than a spinning reel?: It asks for one more skill. The spool turns during the cast, so the brakes, spool tension and your thumb keep it from outrunning the line. A spinning reel's spool stays still, which is one reason spinning and spincast outfits are common starting points.1 2 4 5 6 7 8 9 12 13 14 15
Can you put a spinning reel on a casting rod?: A seat may physically accept the foot, but the reel position, grip and guide layout are designed for a matching reel family. Small casting guides also do not provide the same path for coils leaving a spinning spool.12 18
Which reel is easier with light lures?: Usually the spinning reel. On a baitcaster the lure has to pull line from a turning spool, so very light lures are harder to cast.7 9 10 11
Does a baitcaster twist line less than a spinning reel?: Line twist is more often associated with spinning reels. A revolving baitcast spool pays line out the way it went on, which helps limit twist.7 9 11
