Spincast vs baitcast

A push-button spincast, an open spinning reel and a baitcaster, run through the same cast.

A push-button spincast reel lets line leave a spool that stays still under a cover. A baitcaster frees its spool to turn, so the brakes and your thumb have to control its speed. An open spinning reel also casts from a still spool, with a bail in place of the cover.1 2 3 4 5 6 7 8 9 10 11 12 13 14

Who usually starts with what

A push-button spincast offers a straightforward way to learn to cast: press, hold, then let go. A baitcaster also asks your thumb to manage a spool that keeps turning.1 5 6 7 11 12 15

Mechanism lab

Reel

State

Compare reels

View

Compare with

Reel stateCastRetrieveOverrun risk

What turns when line leaves the reel?

What turns to wind line back in?

Can the spool feed line faster than it leaves?

1 of 3

Still frame. Play a short demonstration.

Try a prediction

Fig. 1

Spincast reel

Holding the button retracts the pickup pin; releasing it lets line leave the fixed spool in coils through the nose hole.1

Why it works this way

The spool stays stationary during the cast, so rotating-spool overrun does not apply.1 2 3

Turning the handle spins the pin head around the fixed spool; the pin catches the line and winds it on under the cover.1

Why it works this way

The pin head is the spincast reel's rotor: it revolves, the spool does not.1 2 3 4

No rotating-spool overrun on this cast. Loose line can still tangle behind the spinnerhead or inside the cover.2 3

Why it works this way

Overrun needs a revolving spool.6 9 11 12

Fig. 2

Spinning reel

Bail open: line leaves the fixed spool in coils over its lip. No part of the reel turns.13 14

Why it works this way

Because the spool is fixed, the cast needs nothing to spin; the coils are why the first rod guide is large.13 14 16

Turning the handle spins the rotor around the fixed spool; the line roller carries line onto the spool while the spool moves in and out.2 3 4

Why it works this way

The gear ratio is how many rotor turns one handle turn makes; the spool's in-and-out travel lays line evenly.2 3 5 9 17 18 19

No rotating-spool overrun on this cast: the spool stays stationary. Loose or twisted line can still leave in loops and tangle.2 3

Why it works this way

The spool does not rotate during a normal cast, so it cannot feed line by continuing to spin. Loose or twisted line can still tangle.2 3 6 9 11 12

Fig. 3

Baitcast reel

Thumb bar pressed: the spool is freed from the gears and spins as the lure pulls line off it.4 5 6 7

Why it works this way

This is the mechanism that differs from a spinning reel: the spool itself revolves to pay out line.2 3 4 5 6 7

Turning the handle re-engages the clutch and turns the spool; the level wind walks the line across it.2 5

Why it works this way

The spool is driven through the gears, so the ratio is spool turns per handle turn here, not rotor turns.3 4 5 6 7 9 17 18

The lure has slowed but the spool is still turning: line lifts off in loose loops that pile on the spool.6 9 11 12

Why it works this way

Three separate checks slow the spool: spool tension, the brake system, and the thumb as the lure lands.5 6 7 8 9 10 11 12

fishing line active partdashed = far side or inside

Simplified mechanism examples. Arrows show the direction of motion; sizes and timing are illustrative.

Image version This diagram as a picture, to save or print

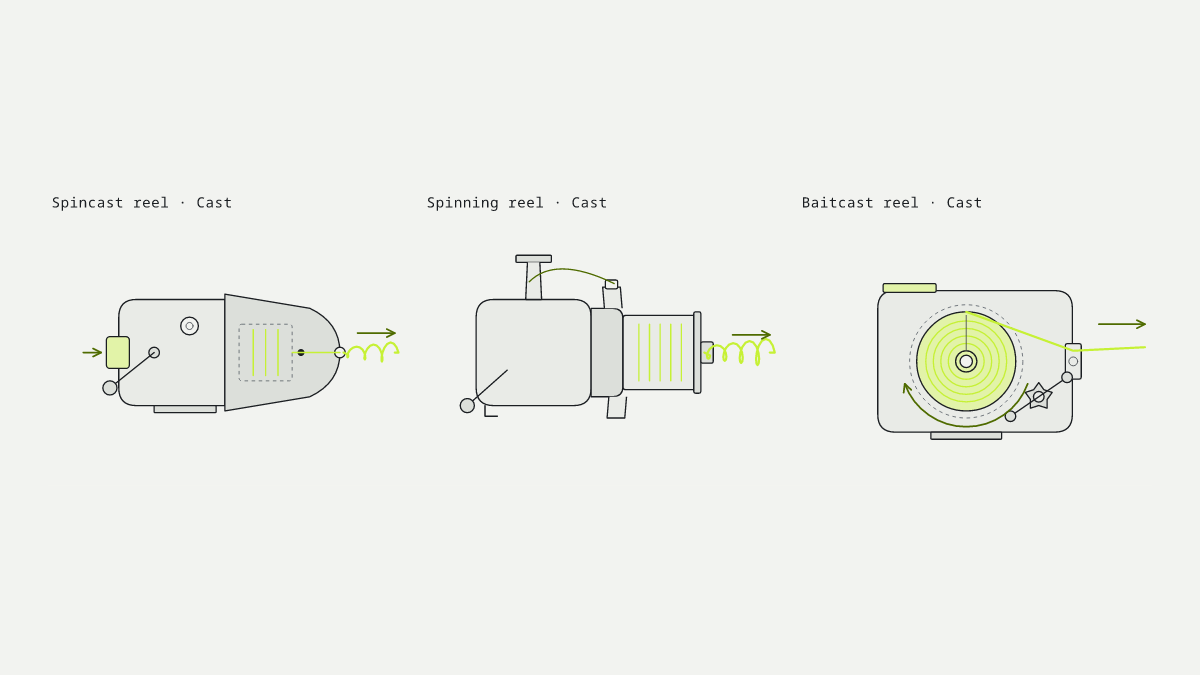

Diagram of the spincast reel, spinning reel and baitcast reel side by side at the cast stage, with the fishing line and the parts that move highlighted.

What differs, row by row

Typical, as described by the sources

Spincast vs baitcast: mechanism and typical trade-offs
Aspect	Spincast reel	Spinning reel	Baitcast reel
Spool	Fixed, under a cover	Fixed, open	Revolving1 2 3 4 5 6 7
Cast release	Push button	Open the bail	Thumb bar1 5 13 14
Overrun risk	No turning-spool overrun; line can still tangle	No turning-spool overrun; line can still tangle	Possible; brakes and thumb help limit it2 3 5 6 7 8 9 10 11 12
Mounts	Above on this push-button example	Below	Above on the casting example15 16

Is a spincast reel the same as a baitcaster?

No: they release line in opposite ways. On a push-button spincast, you press and hold the button, then let go to let line run out from a spool that stays still; turning the handle brings the pickup back into play to wind line on.1 A baitcaster’s thumb bar frees a spool that then has to turn.4 5 6 7

Where the spinning reel fits

An open spinning reel casts from a still spool too: with the bail open, line leaves over the lip and nothing in the reel needs to turn.13 14 A bail and roller take the place of the covered pickup, so the spinning reel sits with the spincast on the still-spool side of this comparison.

An underspin reel is a spincast-style covered reel mounted under the rod and released with a lever or trigger.9 15

Questions people ask

Is a spincast reel the same as a baitcaster?: No. The push-button spincast example keeps its spool still during the cast; the baitcaster’s spool turns.1 4 5 6 7
What is a spincast reel?: A fixed-spool reel enclosed in a cover. Holding the push button, then letting go, lets line run out; turning the handle spins a pickup inside the cover that winds line back on.1
Is a spincast reel the same as a spinning reel?: Both cast from a spool that stays still. A spincast covers the spool and releases line with a button; an open spinning reel uses a bail.1 13 14
What is an underspin reel?: An underspin reel is a spincast-style covered reel mounted under the rod and released with a lever or trigger.9 15
