Tackle Anatomy A visual field guide

Parts of a fishing rod

A spinning rod and a casting rod, labelled from the tip top to the butt cap.

A rod is a flexible blank with guides that carry line to the tip top, and a handle (grips, reel seat and butt cap) where the reel clamps on. Casting rods add a trigger under the seat; only rods that come apart have a ferrule.12345678

Fig. 1 · Sheet 1 of 2

Spinning rod

Whole rodTip

Choose a number to explore a part.

Labelled diagram of a spinning rod in side elevation, reel side down: 1 tip top, 2 running guides, 3 stripper guide, 4 blank, 5 ferrule, 6 guide wraps, 7 hook keeper, 8 winding check, 9 fore grip, 10 reel seat, 11 rear grip, 12 butt cap.Part 1: Tip top1Part 2: Running guides2Part 3: Stripper guide3Part 4: Blank4Part 5: Ferrule5Part 6: Guide wraps6Part 7: Hook keeper7Part 8: Winding check8Part 9: Fore grip9Part 10: Reel seat10Part 11: Rear grip11Part 12: Butt cap12

Match a number to the parts key below. On a small screen, scroll the drawing sideways to see every part.

1Part 1 of 12

Tip top

The final guide at the tip, where line leaves the rod.

Also called tip guide

Part reference & sources

Parts key What each part does, with sources
Parts key · spinning rod
#PartWhat it does
1Tip topalso: tip guideThe final guide at the tip, where line leaves the rod.123
2Running guidesalso: guides, eyesGuides hold the line along the blank so the whole rod, not just the tip, shares the load of a pull.4
3Stripper guidealso: butt guide, first guideSpinning rods generally start with a larger guide near the reel to gather outgoing coils, followed by smaller guides toward the tip.5
4Blankalso: rod blankThe main structural length of the rod; its construction helps determine how it bends.8
5Ferrulealso: jointThe joint connecting sections of this multi-piece rod.127
6Guide wrapsalso: windings, thread wrapsThread windings secured under finish hold the guide feet to the blank.139
7Hook keeperalso: keeperA place to secure the hook or lure between uses; not fitted to every rod.13
8Winding checkalso: trim ringA trim ring at the transition between the handle assembly and exposed blank.910
9Fore gripalso: foregripThe grip ahead of the reel seat; some rods omit it.311
10Reel seatalso: seat, locking ringThe reel seat secures the reel foot to the rod. The screw-locking example uses hoods and a locking ring; other seat designs differ.45
11Rear gripalso: handle, butt sectionThe handle section behind the reel seat.35
12Butt capalso: end capThe fitting that finishes the end of this handle.2312
Fig.
1
Object
Spinning rod
View
side elevation, reel side down
Sheet
1 of 2
Rev.
Image version The labelled sheet as a picture

Print sheet gives this labelled drawing followed by a blank copy for practice.

Labelled diagram of a spinning rod in side elevation, reel side down: 1 tip top, 2 running guides, 3 stripper guide, 4 blank, 5 ferrule, 6 guide wraps, 7 hook keeper, 8 winding check, 9 fore grip, 10 reel seat, 11 rear grip, 12 butt cap.
Fig. 2 · Sheet 2 of 2

Casting rod

Whole rodTip

Choose a number to explore a part.

Labelled diagram of a casting rod in side elevation, reel side up: 1 tip top, 2 running guides, 3 first guide, 4 blank, 5 ferrule, 6 guide wraps, 7 hook keeper, 8 winding check, 9 fore grip, 10 reel seat, 11 trigger, 12 rear grip, 13 butt cap.Part 1: Tip top1Part 2: Running guides2Part 3: First guide3Part 4: Blank4Part 5: Ferrule5Part 6: Guide wraps6Part 7: Hook keeper7Part 8: Winding check8Part 9: Fore grip9Part 10: Reel seat10Part 11: Trigger11Part 12: Rear grip12Part 13: Butt cap13

Match a number to the parts key below. On a small screen, scroll the drawing sideways to see every part.

1Part 1 of 13

Tip top

The final guide at the tip, where line leaves the rod.

Also called tip guide

Part reference & sources

Parts key What each part does, with sources
Parts key · casting rod
#PartWhat it does
1Tip topalso: tip guideThe final guide at the tip, where line leaves the rod.123
2Running guidesalso: guides, eyesHold the line along the blank and distribute a pull; these rings are above the blank in this example.45
3First guidealso: butt guideThe first guide receives line from the reel. This casting example uses a small ring above the blank.456
4Blankalso: rod blankThe main structural length of the rod; its construction helps determine how it bends.8
5Ferrulealso: jointThe joint connecting sections of this multi-piece rod.127
6Guide wrapsalso: windingsThread windings secured under finish hold the guide feet to the blank.139
7Hook keeperalso: keeperA place to secure the hook or lure between uses; not fitted to every rod.13
8Winding checkalso: trim ringA trim ring at the transition between the handle assembly and exposed blank.910
9Fore gripalso: foregripThe grip ahead of the reel seat; some rods omit it.311
10Reel seatalso: seatClamps the reel foot on top of the blank; the reel sits above the hand.456
11Triggeralso: trigger gripThe trigger is the finger support under a casting rod's reel seat, used while gripping the rod with the reel above it.5
12Rear gripalso: handleThe handle section behind the reel seat.35
13Butt capalso: end capThe fitting that finishes the end of this handle.2312
Fig.
2
Object
Casting rod
View
side elevation, reel side up
Sheet
2 of 2
Rev.
Image version The labelled sheet as a picture

Print sheet gives this labelled drawing followed by a blank copy for practice.

Labelled diagram of a casting rod in side elevation, reel side up: 1 tip top, 2 running guides, 3 first guide, 4 blank, 5 ferrule, 6 guide wraps, 7 hook keeper, 8 winding check, 9 fore grip, 10 reel seat, 11 trigger, 12 rear grip, 13 butt cap.

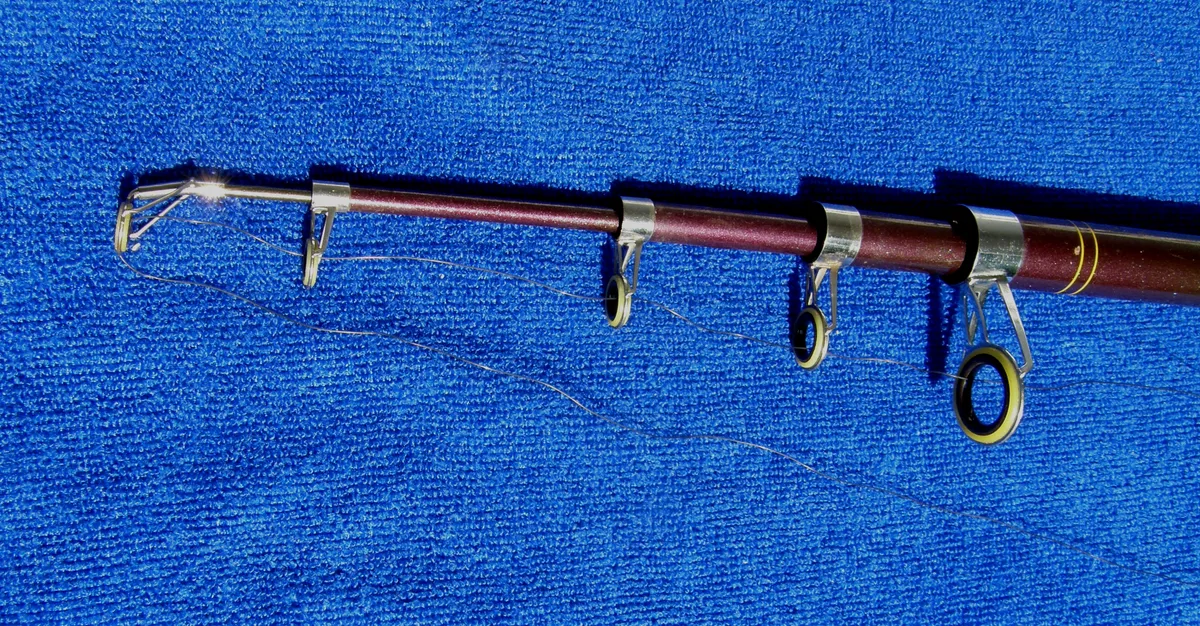

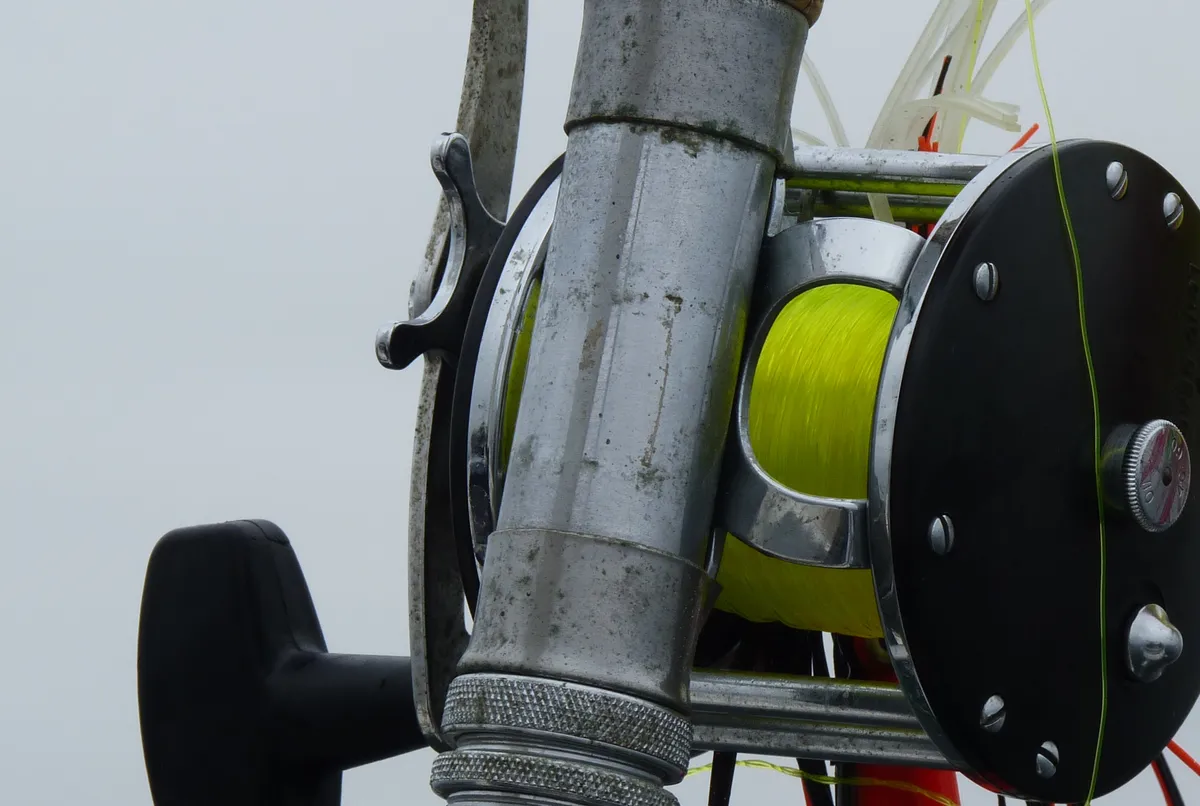

Fig. 3 · Photographs

The same parts on real rods

Photographs of different rods. Find each part on the drawings above.

What are the parts of a fishing rod?

A rod is a flexible blank with guides that carry the line to the tip, and a handle with a reel seat where the reel clamps on.458 The numbers on the drawings run from tip to butt, while the line runs the other way: off the reel, through the first guide and the running guides, and out through the tip top.

How the guides share the load

The guides spread a pull along the whole blank instead of leaving the load at the tip.4 On a spinning rod, the large first guide also gathers the coils coming off the reel.5 Trace the line path before you try the practice round.

Parts your rod may not have

The ferrule is the joint between sections, so a one-piece rod has none.127 These drawings show two-piece rods with a full set of fittings. Some rods have no foregrip311, and not every rod has a hook keeper.

Seat and grips

The reel seat clamps the reel foot to the rod; the grips are the parts you hold, in front of it and behind it.45 On a casting rod the trigger sits under the seat. The rod comparison puts both layouts one above the other.

Questions people ask

What is the difference between the guides on a spinning rod and a casting rod?
Spinning guides generally run below the blank and start with a larger guide to gather coils. The casting layout shown has smaller guides above the blank. Guide count varies with rod length and design.56
What is the reel seat on a fishing rod?
The fitting that secures the reel foot to the rod. The examples use hoods tightened by a locking ring; other reel-seat designs differ.45
What does the ferrule do?
It is the joint where the sections of a multi-piece rod fit together.127
Which part of the rod sets its action and power?
The blank is the main structural part. Its construction helps determine how much load bends it and where the bend develops.6813
