What is a baitcaster?

Step through a cast on a low-profile baitcaster and watch the spool.

A baitcaster is a reel whose spool turns to let line out and to wind it back in. On a typical low-profile baitcaster, a thumb bar frees the spool for the cast, and spool tension, brakes and your thumb control its speed. Baitcasters also come in round designs, with right- or left-hand handles.1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Mechanism lab

Trace the line before anything moves.

What turns when line leaves the reel?

What keeps moving while line goes out?

What turns to wind line back in?

Which part yields when the drag slips?

Can the spool feed line faster than it leaves?

2 of 6

Still frame. Play a short demonstration.

Try a prediction

Fig. 1

Baitcast reel

Engaged (thumb bar up): the spool is locked to the gears and holds the line, with the thumb resting on it.1

Why it works this way

Until the thumb bar is pressed, the spool is locked to the gears; only a pull stronger than the drag can turn it.1

Thumb bar pressed: the spool is freed from the gears and spins as the lure pulls line off it.1 2 3 4

Why it works this way

This is the mechanism that differs from a spinning reel: the spool itself revolves to pay out line.1 2 3 4 16 17

The spool keeps turning as line runs out. Spool tension and the brakes slow it, which helps keep it from turning faster than line leaves.2 5 6 7

Why it works this way

Tension acts at the spool shaft; the brake acts on spool speed during the cast. They are separate controls.2 5 6 7

Turning the handle re-engages the clutch and turns the spool; the level wind walks the line across it.1 16

Why it works this way

The spool is driven through the gears, so the ratio is spool turns per handle turn here, not rotor turns.1 2 3 4 6 17 18 19

A pull above the star-drag setting turns the spool backwards against the drag while the handle stays still.1 11 20

Why it works this way

The drag sits between the handle and the spool drive, so the spool can yield without the handle turning.1 11

The lure has slowed but the spool is still turning: line lifts off in loose loops that pile on the spool.2 6 12 13

Why it works this way

Three separate checks slow the spool: spool tension, the brake system, and the thumb as the lure lands.1 2 4 5 6 7 12 13

fishing line active partdashed = far side or inside

Simplified mechanism examples. Arrows show the direction of motion; sizes and timing are illustrative.

Image version This diagram as a picture, to save or print

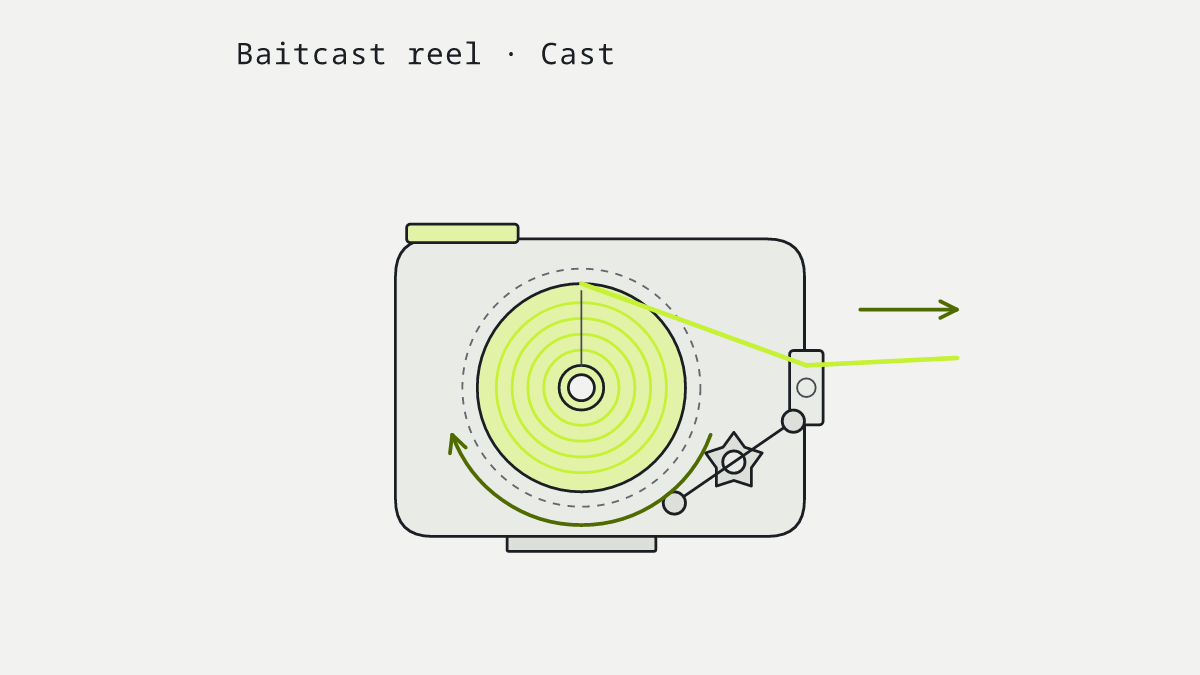

Diagram of a baitcast reel, cast: Thumb bar pressed: the spool is freed from the gears and spins as the lure pulls line off it.

What is a baitcaster reel?

A baitcaster is a reel whose spool turns: it spins to let line out on the cast, and the handle turns it back through the gears.1 2 3 4 On a spinning reel, by contrast, line peels off the end of a spool that stays still.

Because the spool turns, your thumb can feather it during a cast and stop it as the lure lands.1 2 4 12 13 That is also why a baitcaster needs setting up: a spool that keeps turning faster than line leaves can pile loose loops on the reel.2 6 12 13

Round or low-profile

Baitcasters come with round or low-profile bodies.10 11 The low-profile example in the lab shows the thumb bar, spool and level wind clearly; the turning spool, not the body shape, is what makes it a baitcaster.

What to learn next

First find the casting controls. Then compare Cast with Overrun risk in the lab. The backlash guide separates spool tension, brakes and your thumb from the drag, and baitcaster vs spinning reel compares the two layouts row by row.

Questions people ask

Why does a baitcaster sit on top of the rod?: The reel and rod grip place the spool within reach of the thumb. A trigger under the seat supports the fingers while the thumb controls the cast.1 2 4 9 12 13
Are baitcasters left-handed or right-handed?: Both exist. Baitcast reels are made in right-hand and left-hand retrieve versions, with the handle traditionally on the right.6 14 15 16
What is a round baitcaster?: A baitcaster with a round frame instead of a low-profile body. The spool turns in the same way; the controls can sit in different places.10 11
