Spinning rod vs casting rod

Both rods drawn one above the other, so the reel seat, first guide and trigger line up.

A typical spinning rod carries the reel and guides below the blank, with a large first guide to gather line coils. A casting rod usually carries the reel and smaller guides above the blank, with a trigger under the seat. Guide count varies.1 2

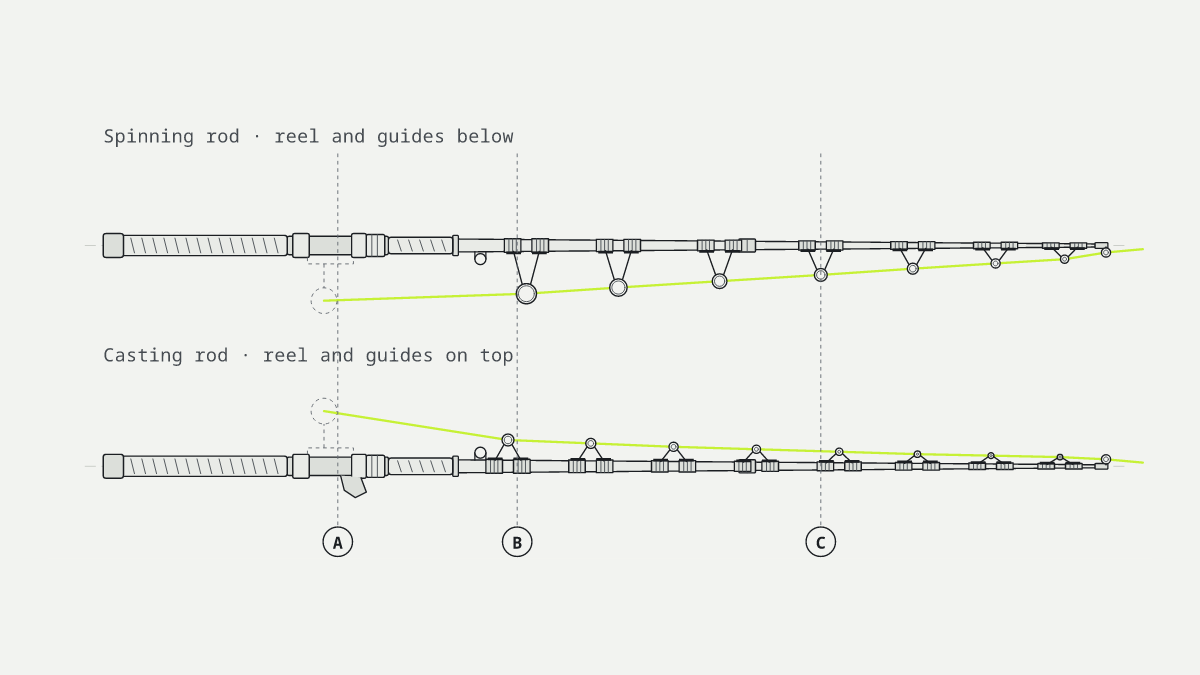

Fig. 1 — Spinning rod over casting rodMatched diagram sizes · illustrative layouts

Fig.: 1
Object: Spinning and casting rods
View: side elevation, simplified comparison
Rev.: 2026-09-26

A: Reel seat: reel below, or on top with a trigger
B: First guide: large to gather coils, or small
C: Guides: below the blank on the spinning example, above it on the casting example
·: Each rod is built for one reel position; the guide sizes follow from how line leaves that reel.1 2

Image version This diagram as a picture, to save or print

Diagram of a spinning rod above a casting rod at the same scale: the spinning rod’s reel and larger guides hang below the blank; the casting rod’s reel and smaller guides sit on top, with a trigger under the seat.

Fig. 2 · Photographs

Reel side, on real handles

Two different outfits, photographed. Compare where the reel sits and what the fingers hold.

Spinning rod
The reel hangs below the rod, and the seat has no trigger.1 2
Photo: Jonathan Ewen & Stephen Ewen CC BY 3.0 Image details

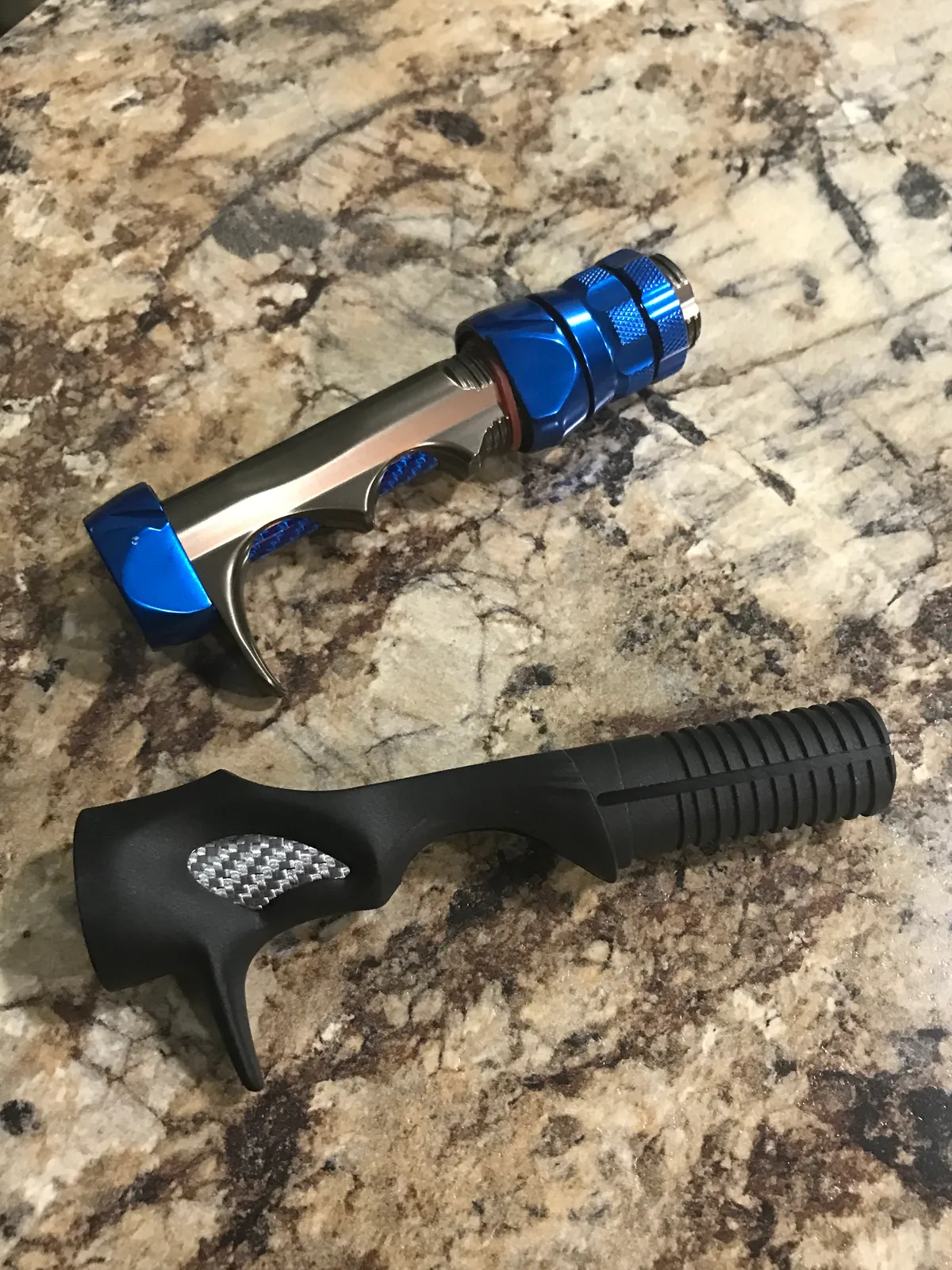

Casting handles
Each handle has a finger trigger under the seat, because the reel sits on top.1 2
Photo: Drakedm09 CC BY-SA 4.0 Image details

What differs, row by row

Typical, as described by the sources

Spinning rod vs casting rod: mechanism and typical trade-offs
Aspect	Spinning rod	Casting rod
Reel position	Below the blank	Above the blank1 2
Guides	Below; larger first guide	Above in this example; smaller guide rings2
Reel seat	Seat without a trigger in this example	Seat with a finger trigger in this example2
Reel it takes	Spinning (fixed spool)	Baitcast (revolving spool)3 4 5 6 7 8

What is the difference between a spinning rod and a casting rod?

A typical spinning rod carries its reel and guides below the blank; a casting rod carries the reel on top and usually has a trigger grip.1 2 The grip, the reel position and the line path belong to one layout. To tell them apart, look for a trigger under the seat, then follow the guide rings along the blank.

Guide size tells you more than guide count

Spinning rods generally start with a larger first guide to gather coils leaving a fixed spool.2 Smaller casting guides don’t need to gather the same wide coils. The number of guides depends on the rod’s length and build, so counting rings won’t tell you the type.

Will a spinning reel fit a casting rod?

Each rod is built for one reel position: a spinning reel hangs below the blank, and a casting rod’s seat and trigger put the reel on top.1 2 A reel foot may clamp into the seat and still sit wrong for the grip and guides, so check the reel position and the line path, not only the clamp. Once the layout is clear, action and power describe how the blank bends.

Questions people ask

Why are spinning rod guides bigger?: Line leaves a fixed spool in wide coils; the first guides are sized to gather them before the line runs straight along the blank.2
What is the trigger on a casting rod for?: It gives the fingers a support below the reel seat while the reel sits above the rod. The exact grip depends on the handle and the angler.2
